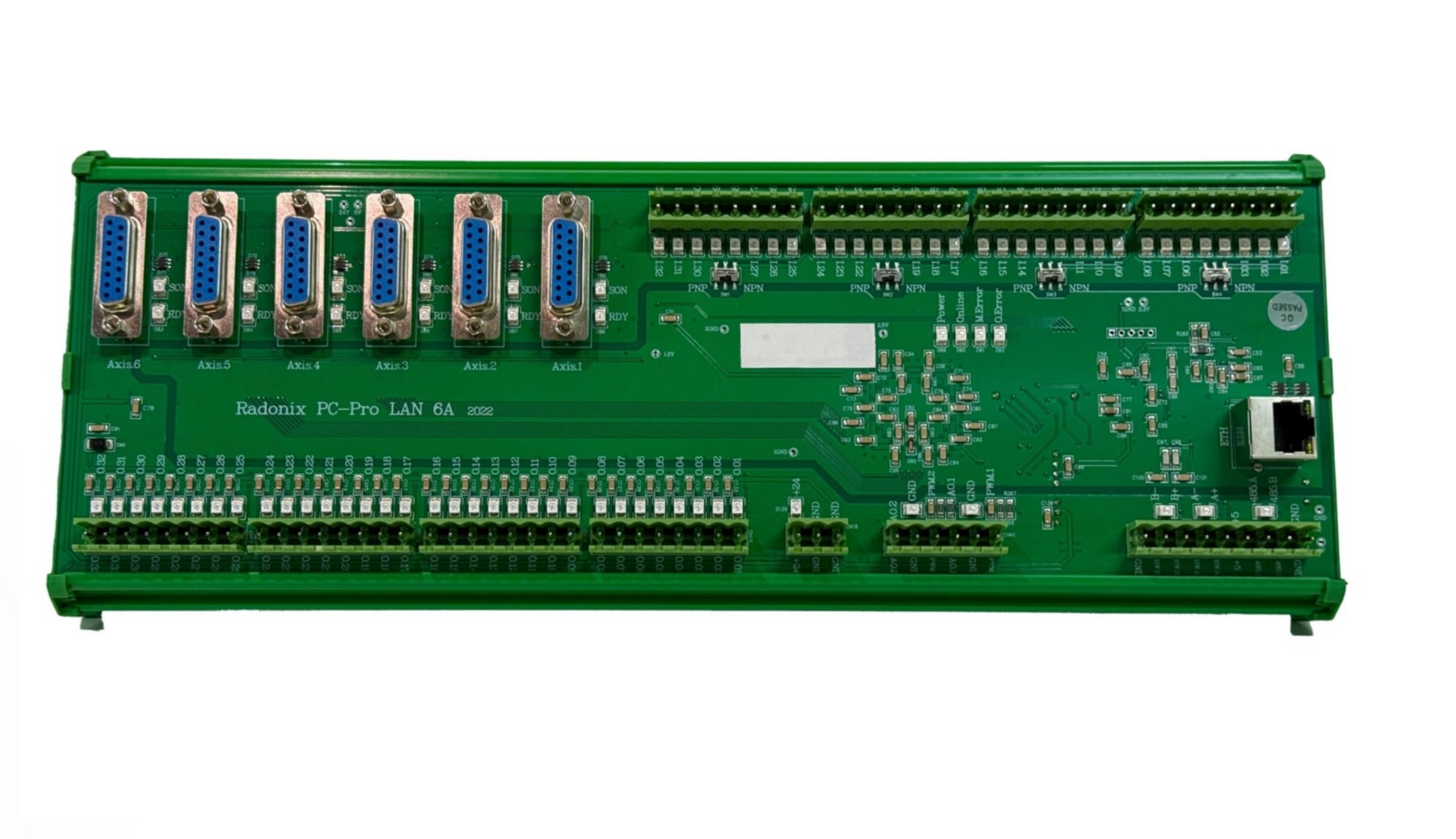

Radonix PC-Pro LAN 6A – 6-Axis CNC Control Card

Radonix PC-Pro LAN 6A – 6-Axis CNC Control Card

A compact PC-based CNC control card from the professional LAN series, controlling 6 axes simultaneously at up to 500,000 pulses per second. Designed for the most demanding industrial multi-axis applications, featuring 32 open-collector outputs and dual PWM outputs.

Key Specifications

• Axes: 6 Interpolated and Independent
• Digital Inputs (PNP/NPN, Isolated): 32 Units
• Digital Outputs: 32 open-collector outputs with short-circuit protection
• Analog Outputs (Protected): 2 Units (0–10 Volts)
• PWM Outputs (Adjustable Frequency): 2 Units (0–5 Volts)
• Axis Pulse Speed: 500,000 pulses/sec
• Axis Pulse Type: Pulse/Direction
• Acceleration Time: 50 to 30,000 mm/s²
• Speed Profile: S-Curve
• Hardware Buffer Size: 2,000 Block FIFO
• Isolation Type: Optocoupler
• Communication: LAN 100 Mbps (TCP/IP), >20m UTP / >50m SFUTP
• Power Consumption: 16–32V, 300mA
• Dimensions: 34 × 13 cm
• Operating System: Windows 7, 8, 10, 11
• Supported Equipment: Joystick, Remote Control, Handwheel

Applications

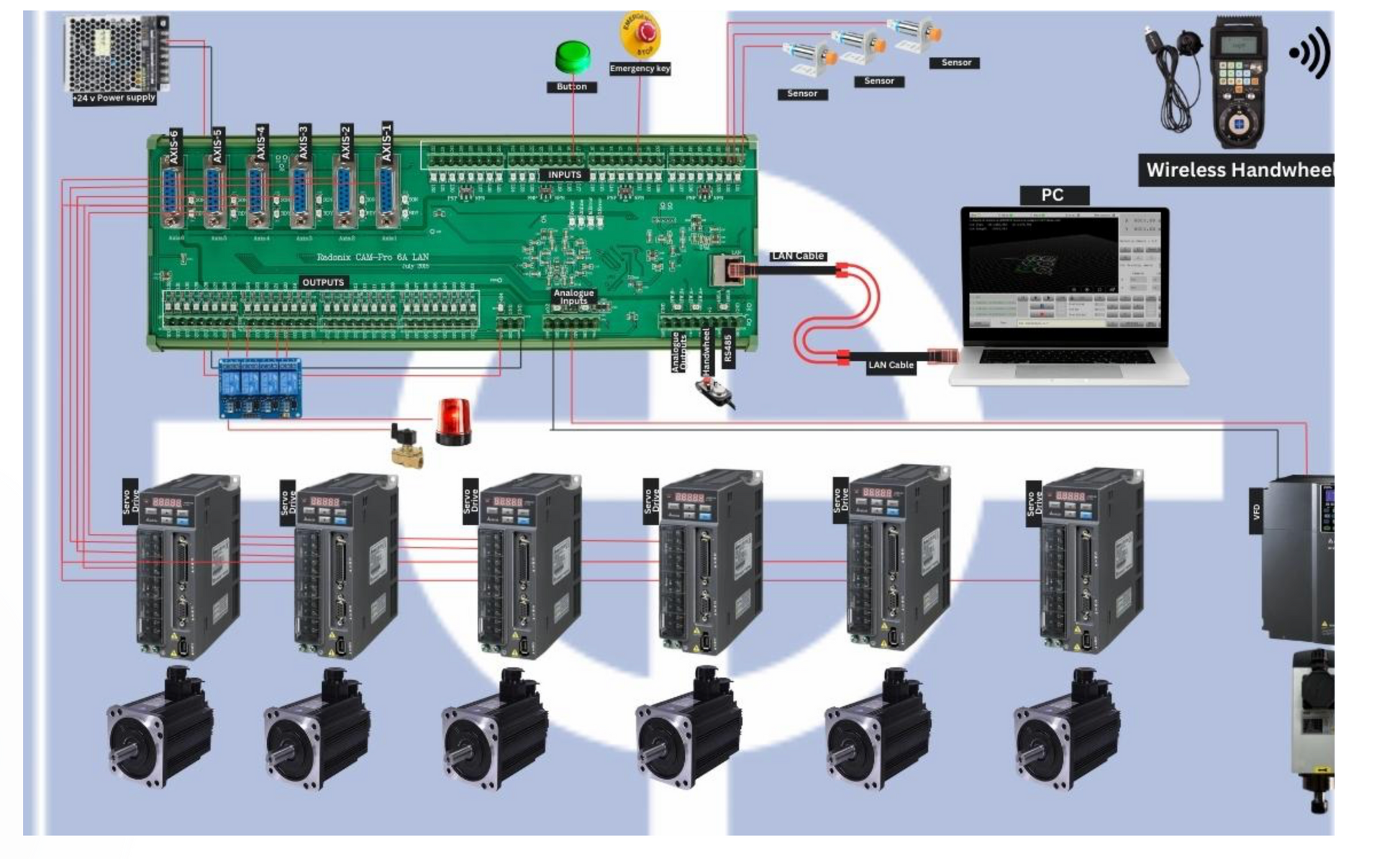

Stone & Marble, Wood/Furniture, Metal, Glass & Ceramic, Textile, Plastic & Composite, Jewelry CNC machines. Compatible with servo and stepper motors (pulse/direction).

What’s Included

• Radonix CAM-Pro software (free)
• 2-Year Warranty
• 10-Year After-Sales Service
• 24/7 Technical Support
