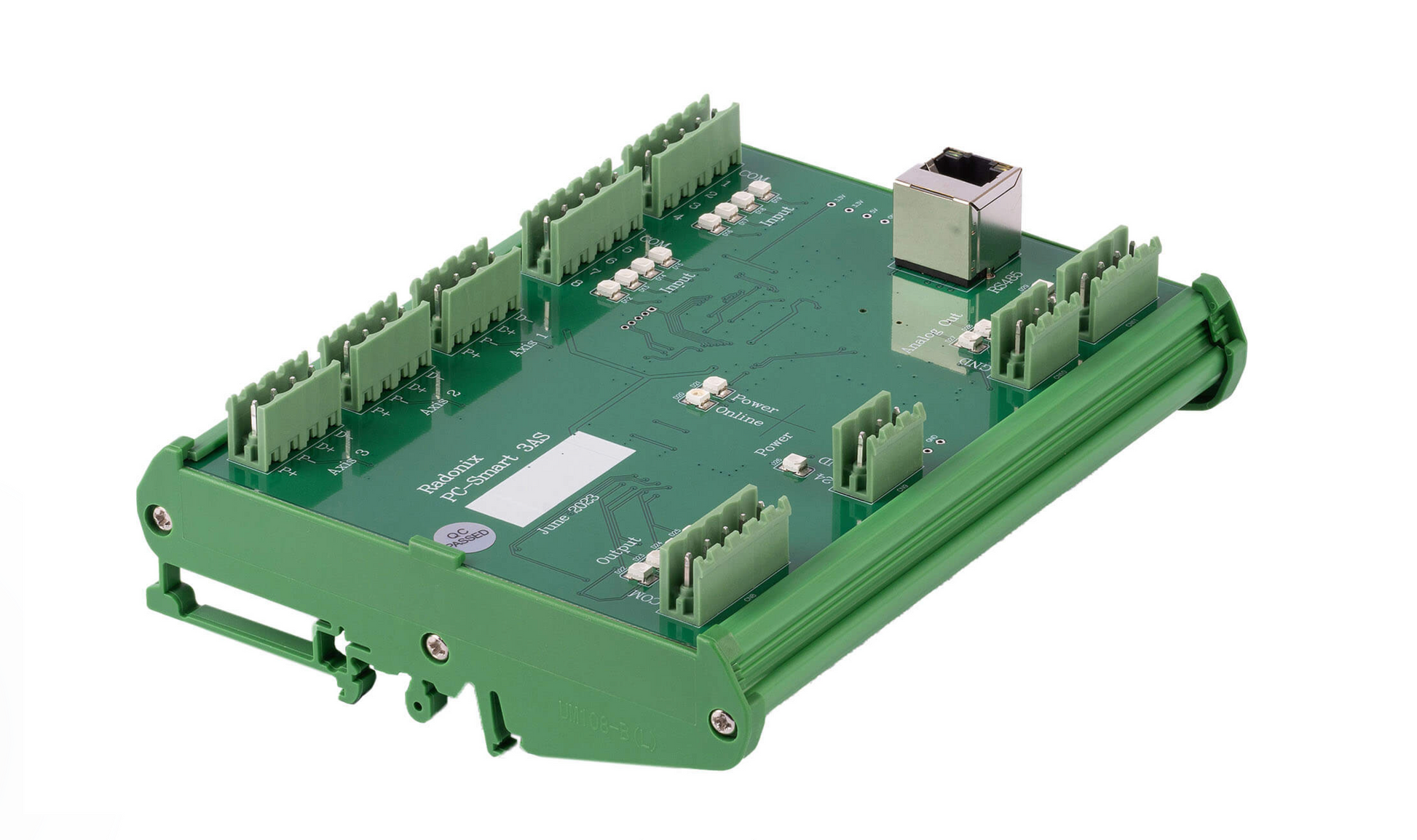

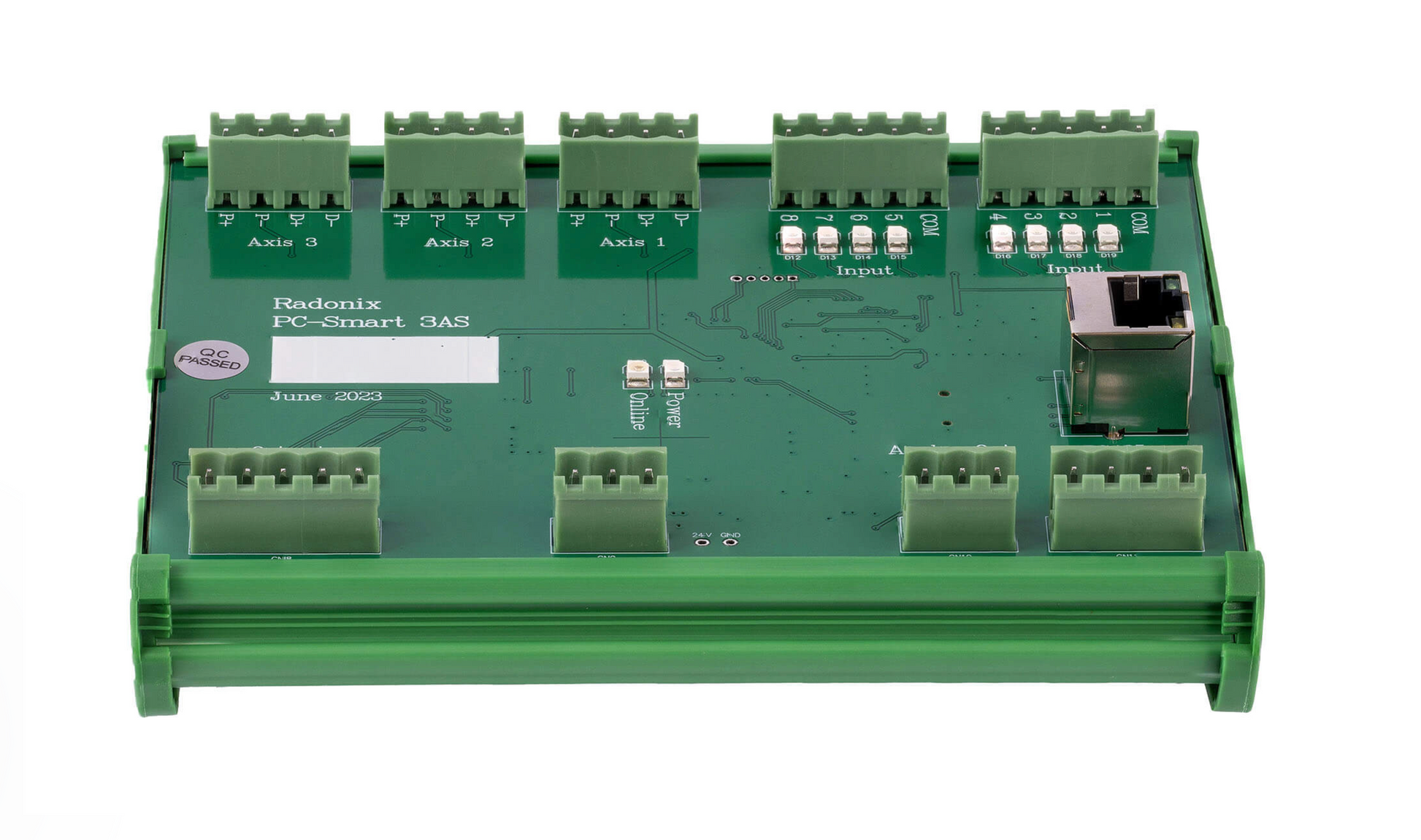

Radonix PC Smart 3AS – 3-Axis CNC Control Card

PC Smart 3AS – 3-Axis CNC Control Card

A compact PC-based CNC control card engineered for demanding industrial environments. Compatible with both servo and stepper motors (pulse/direction), the PC Smart 3AS delivers precision, real-time diagnostics, and operational reliability for 3-axis machining. Control up to 3 axes simultaneously with up to 100,000 pulses per second.

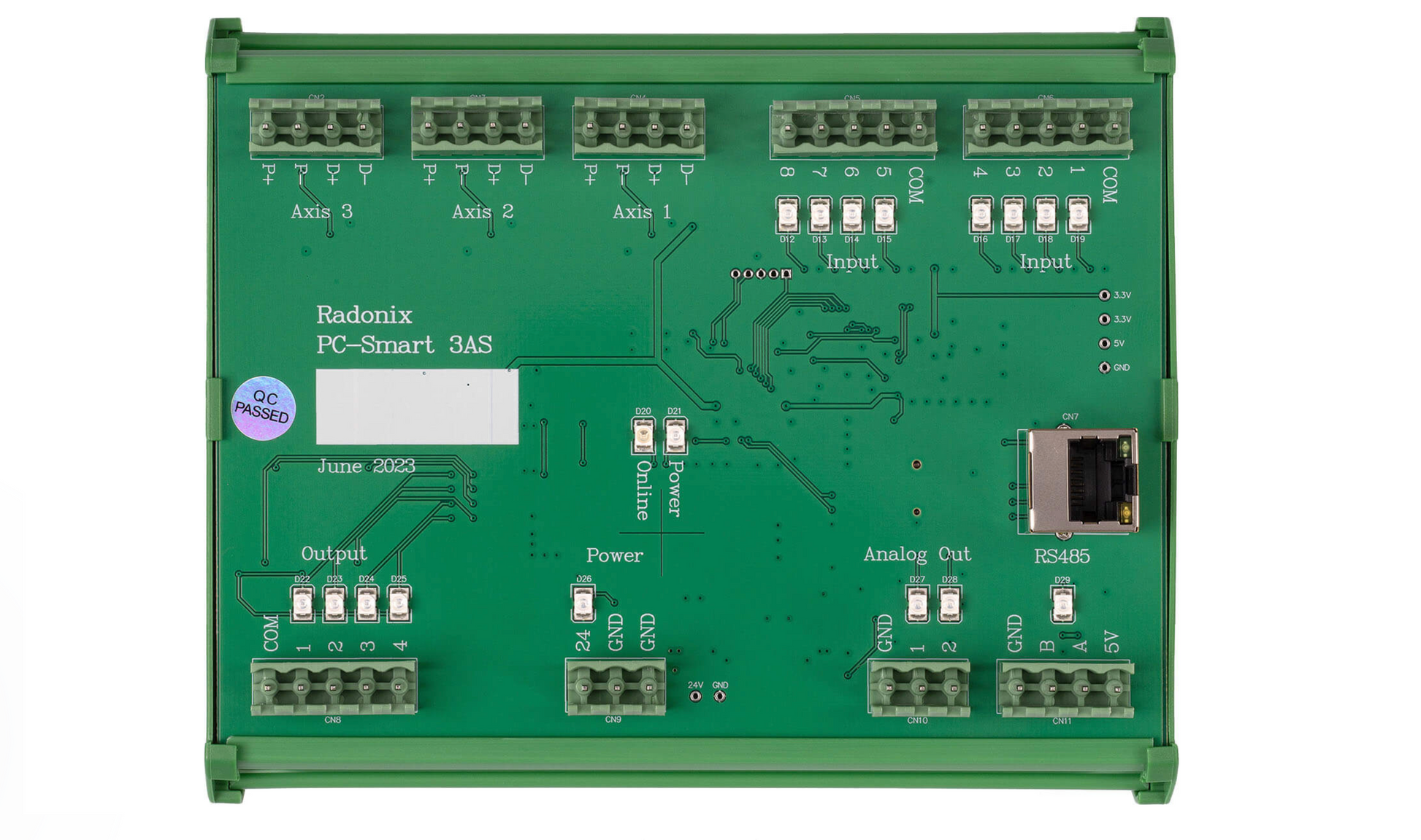

Key Specifications

• Axes: 3 Interpolated and Independent
• Digital Inputs (PNP/NPN, Isolated): 8 Units
• Digital Outputs (PNP/NPN, Protected): 4 Units
• Relay Output: Up to 1 Amp Current
• Analog Outputs: 2 Protected (0–10 Volts)
• Pulse Rate: 100,000 pulses/sec
• Axis Pulse Type: Pulse/Direction
• Acceleration Time: 50 to 30,000 mm/s²
• Speed Profile: S-Curve
• Hardware Buffer Size: 2,000 Block FIFO
• Isolation Type: Optocoupler
• Communication: LAN 100 Mbps (TCP/IP), >20m UTP / >50m SFUTP
• Power Consumption: 12–24V, 300mA
• Dimensions: 15 × 13 cm
• Operating System: Windows 7, 8, 10, 11
• Supported Equipment: Handwheel, Remote Control, Joystick

Applications

The PC Smart 3AS is built for versatility across industries. Confirmed compatible machine types include:

•       Stone & Marble cutting and engraving

•       Wood / Furniture manufacturing and routing

•       Metal milling, fabrication, and multi-face machining

•       Glass & Ceramic precision cutting

•       Textile cutting machines

•       Plastic & Composite fabrication

•       Jewelry CNC engraving

•       Lathes and turning centers

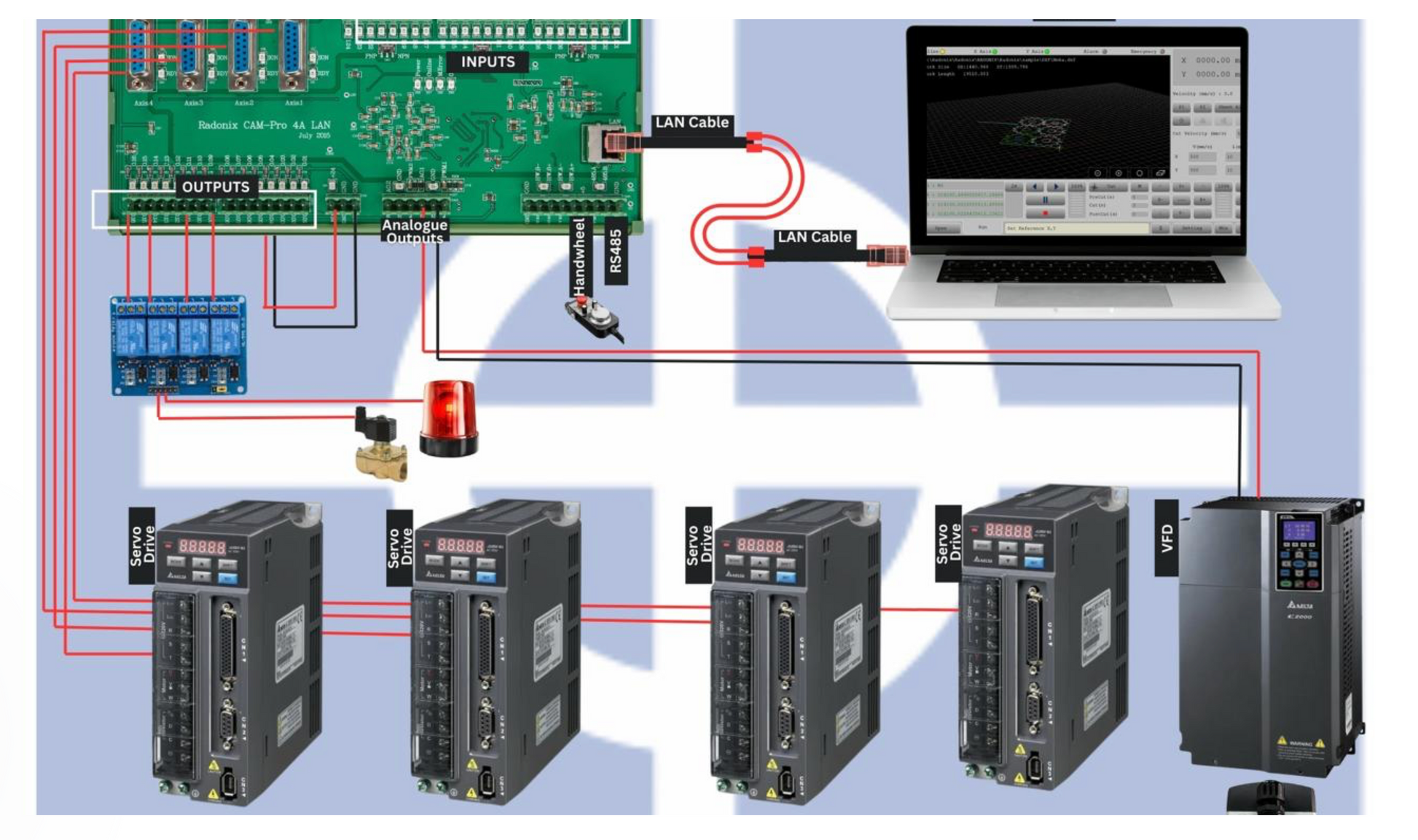

Motor Compatibility: Servo and stepper motors (pulse/direction interface).

What’s Included

• Radonix CAM-Pro software (free)
• 2-Year Warranty
• 10-Year After-Sales Service
• 24/7 Technical Support
