Radonix PC Smart 4A – 4-Axis CNC Control Card

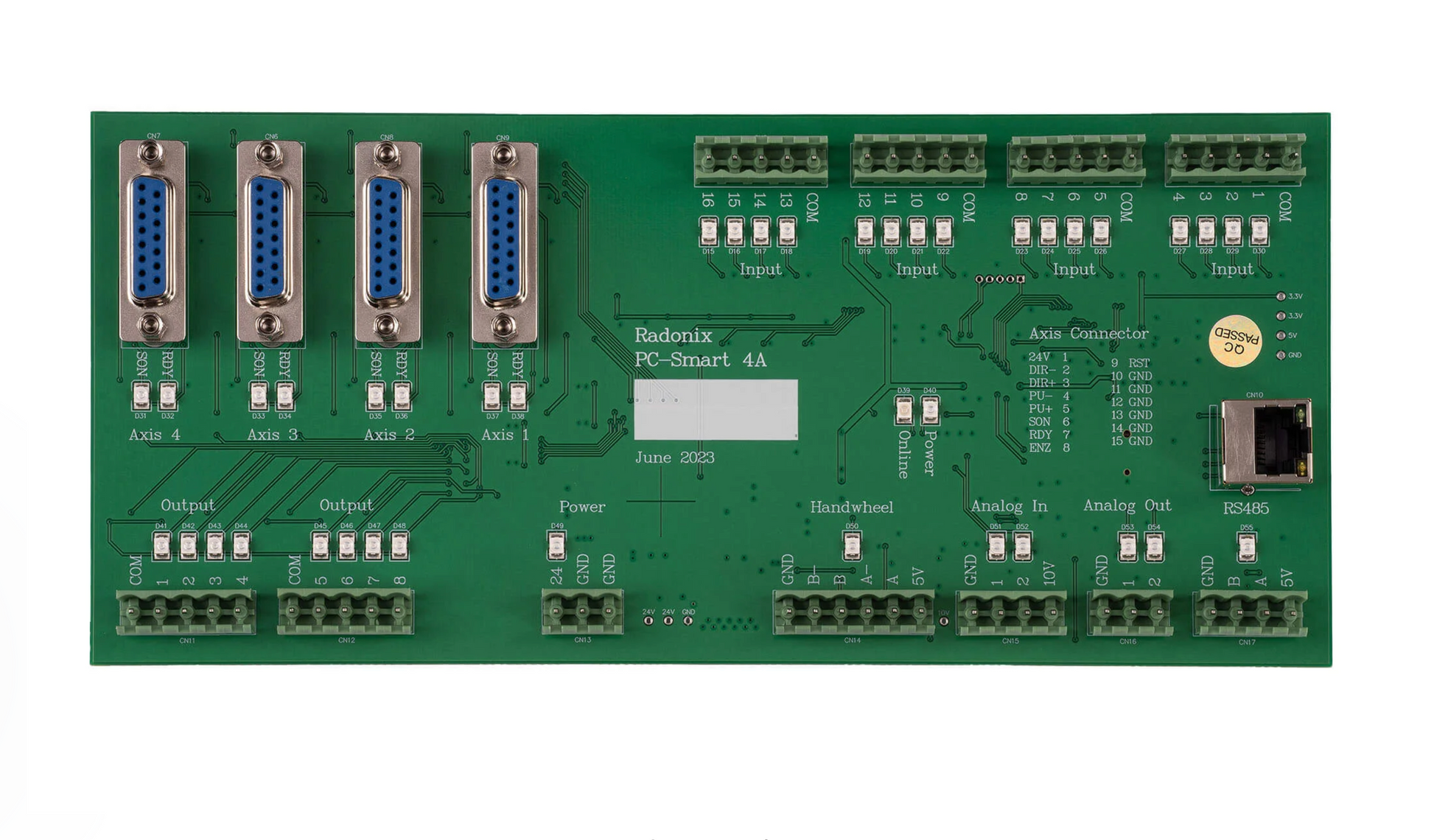

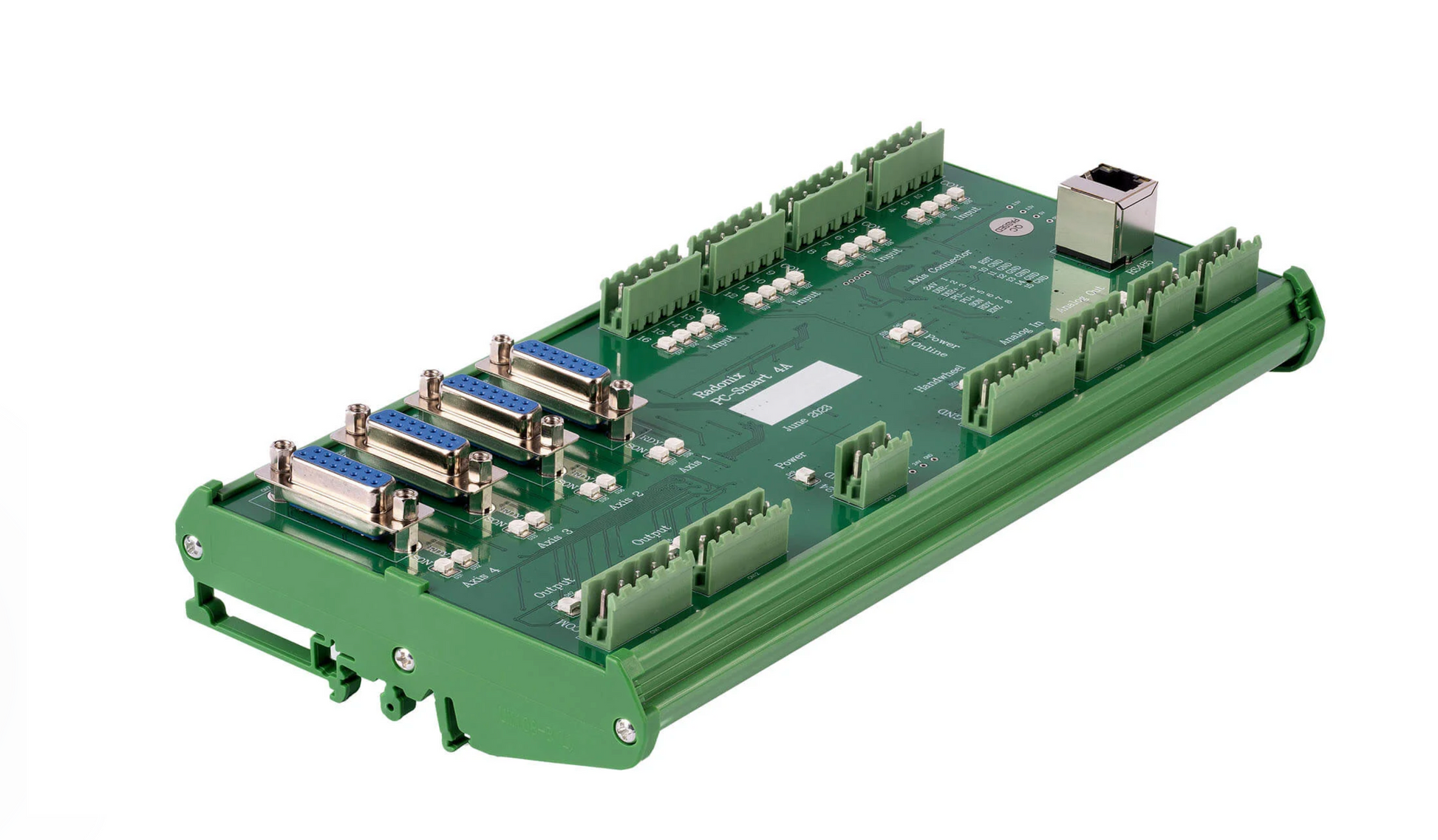

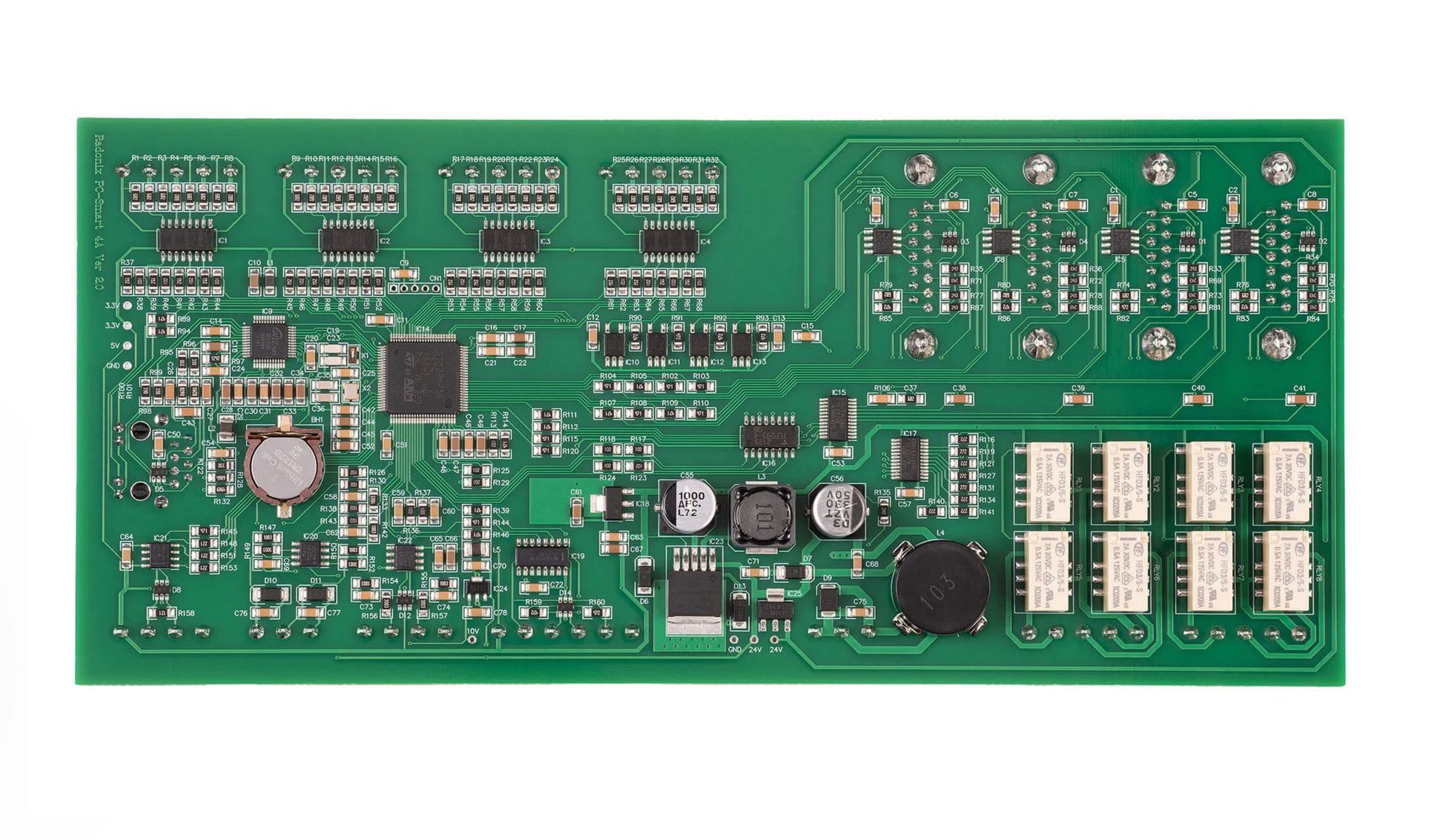

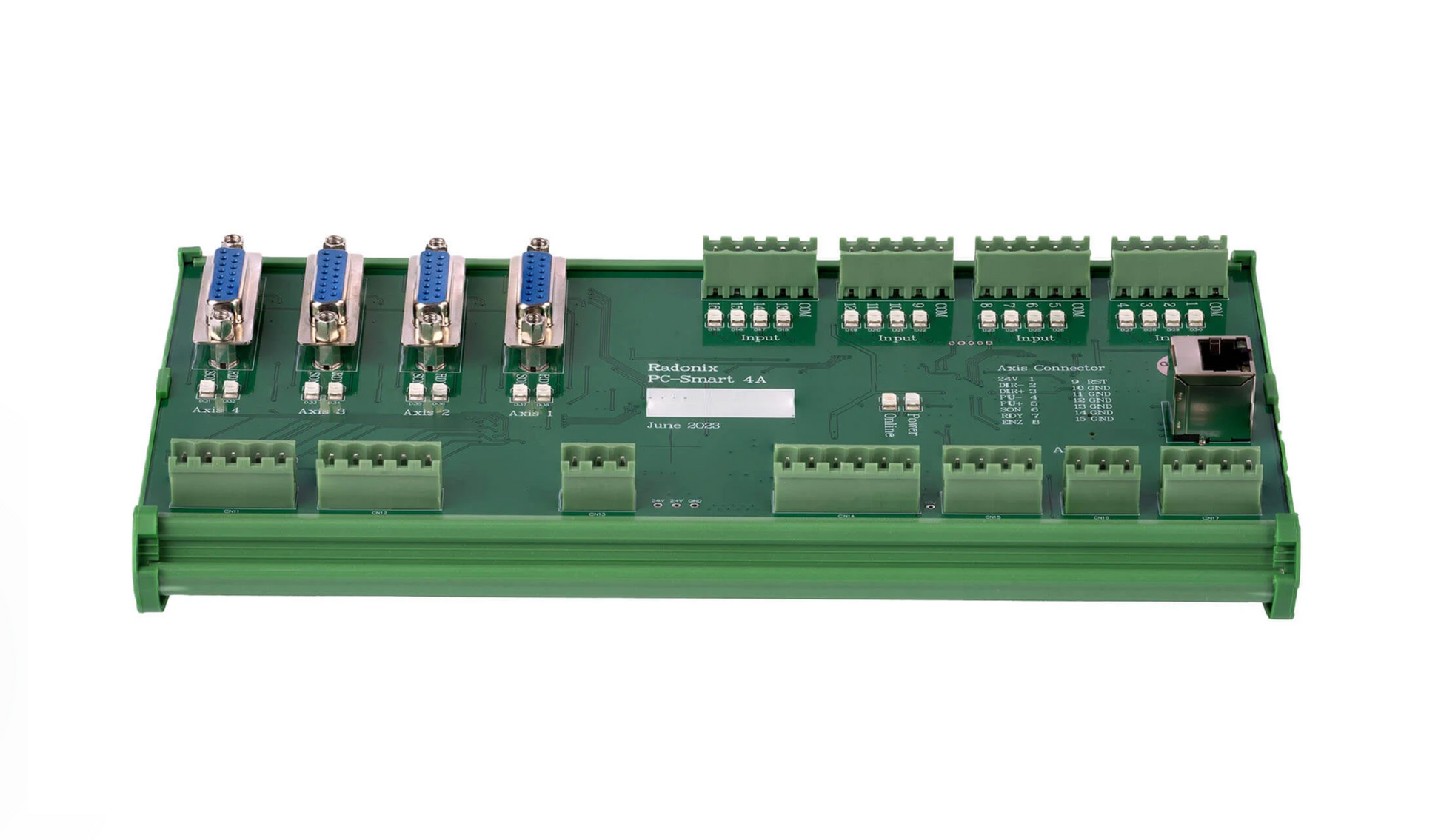

PC Smart 4A – 4-Axis CNC Control Card

A compact PC-based CNC control card capable of controlling 4 axes simultaneously at up to 500,000 pulses per second. Compatible with servo and stepper motors (pulse/direction), the PC Smart 4A delivers exceptional precision, real-time operator control via analog inputs, and industrial-grade reliability for complex multi-axis machining operations.

Key Specifications

• Axes: 4 Interpolated and Independent
• Digital Inputs (PNP/NPN, Isolated): 16 Units
• Digital Outputs (PNP/NPN, Protected): 8 Units
• Analog Outputs (Protected): 2 Units (0–10 Volts)
• Analog Inputs (Isolated): 2 Units (0–10 Volts)
• Axis Pulse Speed: 500,000 pulses/sec
• Axis Pulse Type: Pulse/Direction
• Acceleration Time: 50 to 30,000 mm/s²
• Speed Profile: S-Curve
• Hardware Buffer Size: 2,000 Block FIFO
• Data Exchange Time: 20 milliseconds (PC to Control Unit)
• Control Type: Open-Loop Control
• Hardware Lock: 24 Time Locks (Adjustable via Internal Clock)
• Isolation Type: Optocoupler
• Communication: LAN 100 Mbps (TCP/IP), >20m UTP / >50m SFUTP
• Power Consumption: 12–24V, 300mA
• Dimensions: 25 × 13 cm
• Operating System: Windows 7, 8, 10, 11
• Supported Equipment: Handwheel, Remote Control, Joystick

Applications

The PC Smart 4A is built for complex multi-axis industrial applications. Confirmed compatible machine types include:

•       Wood routers and furniture manufacturing (including automatic tool-changing machines)

•       Stone & Marble cutting and 3D relief work

•       Metal fabrication and multi-face milling

•       Glass & Ceramic cutting (including smart height control applications)

•       Plasma cutting (with smart torch height control)

•       Water jet cutting

•       Laser machines

•       Textile cutting machines

•       Plastic & Composite fabrication

•       Jewelry CNC engraving

•       3D printing

•       Leather cutting

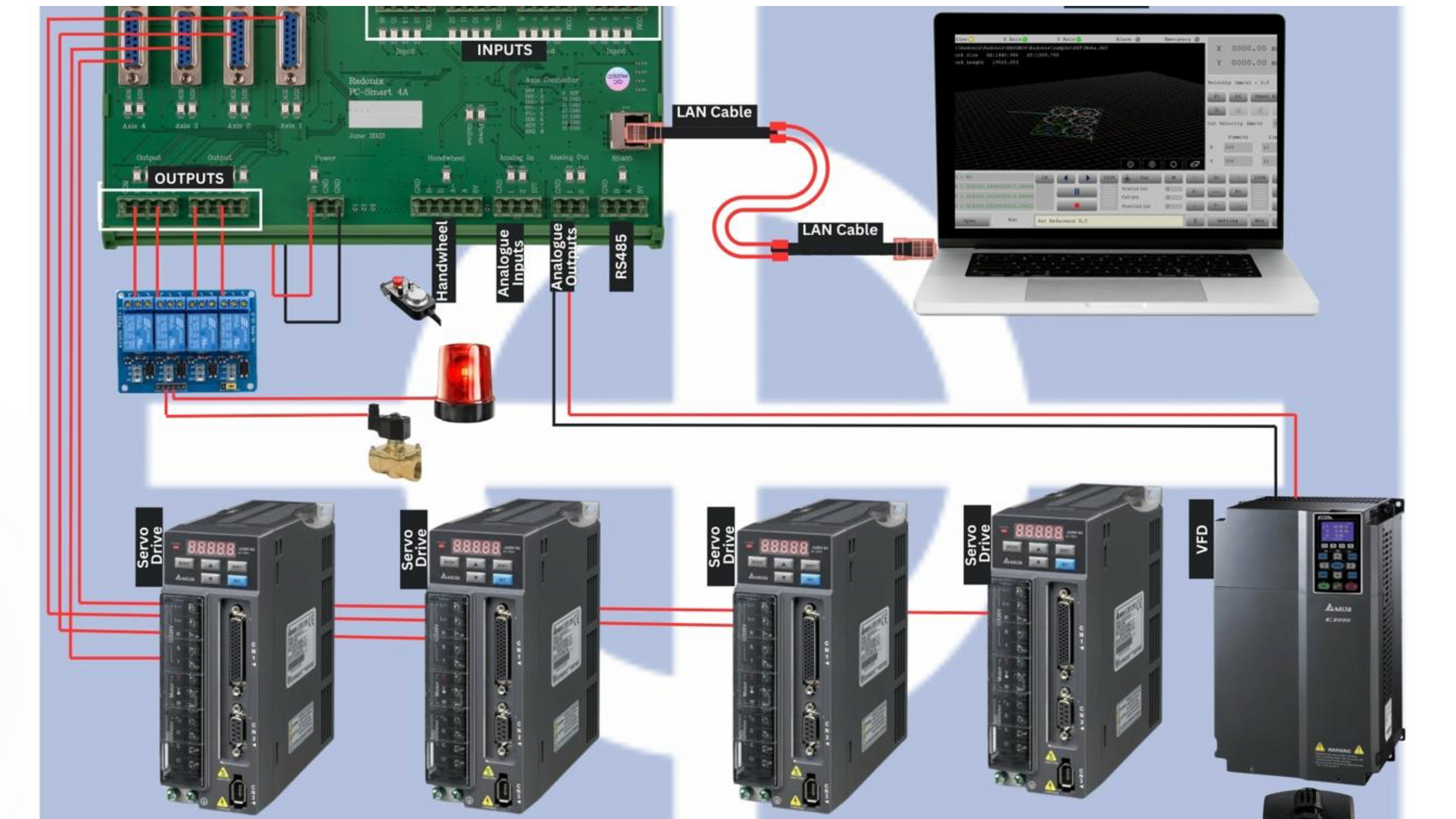

Motor Compatibility: Servo and stepper motors (pulse/direction interface).

What’s Included

• Radonix CAM-Pro software (free)
• 2-Year Warranty
• 10-Year After-Sales Service
• 24/7 Technical Support
