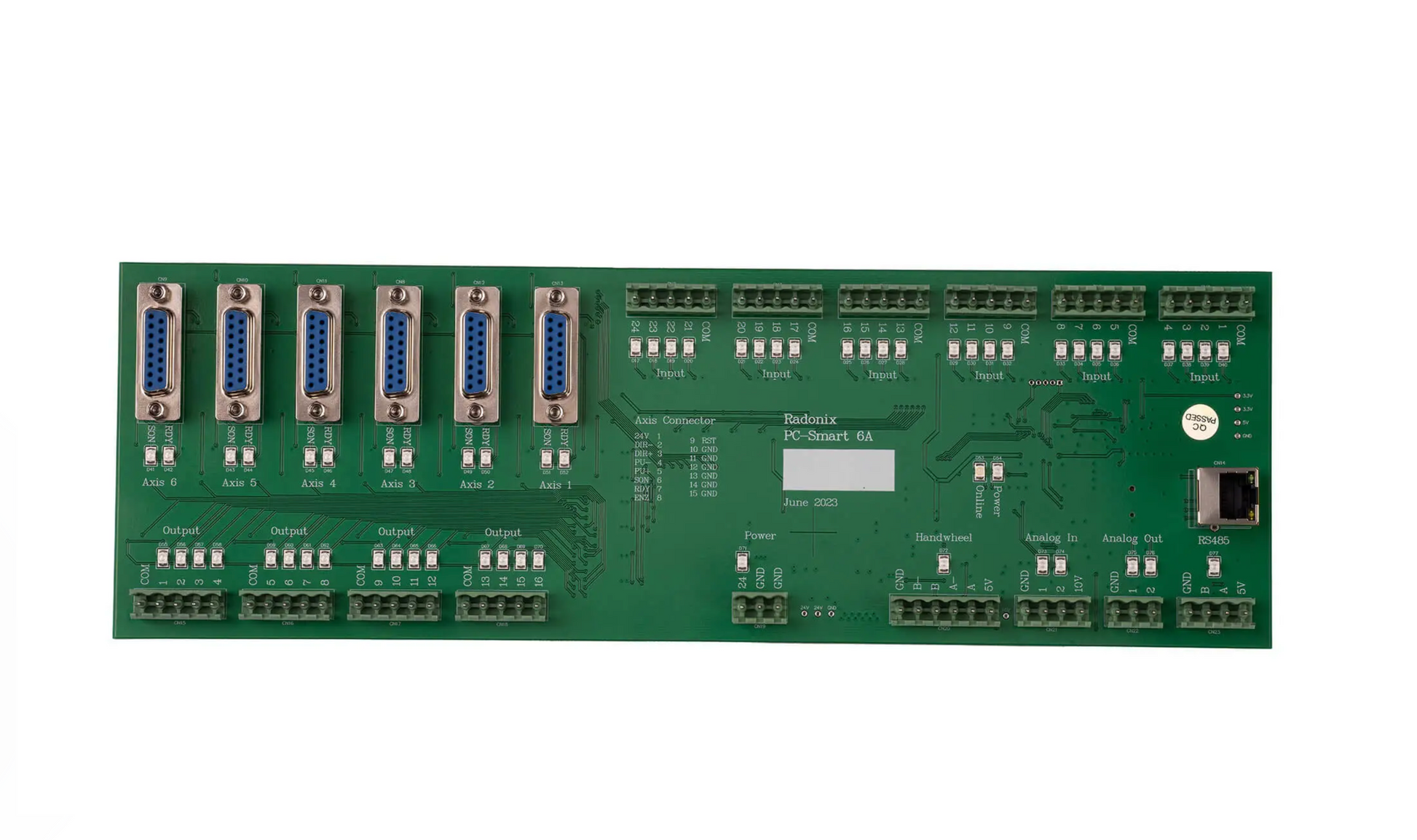

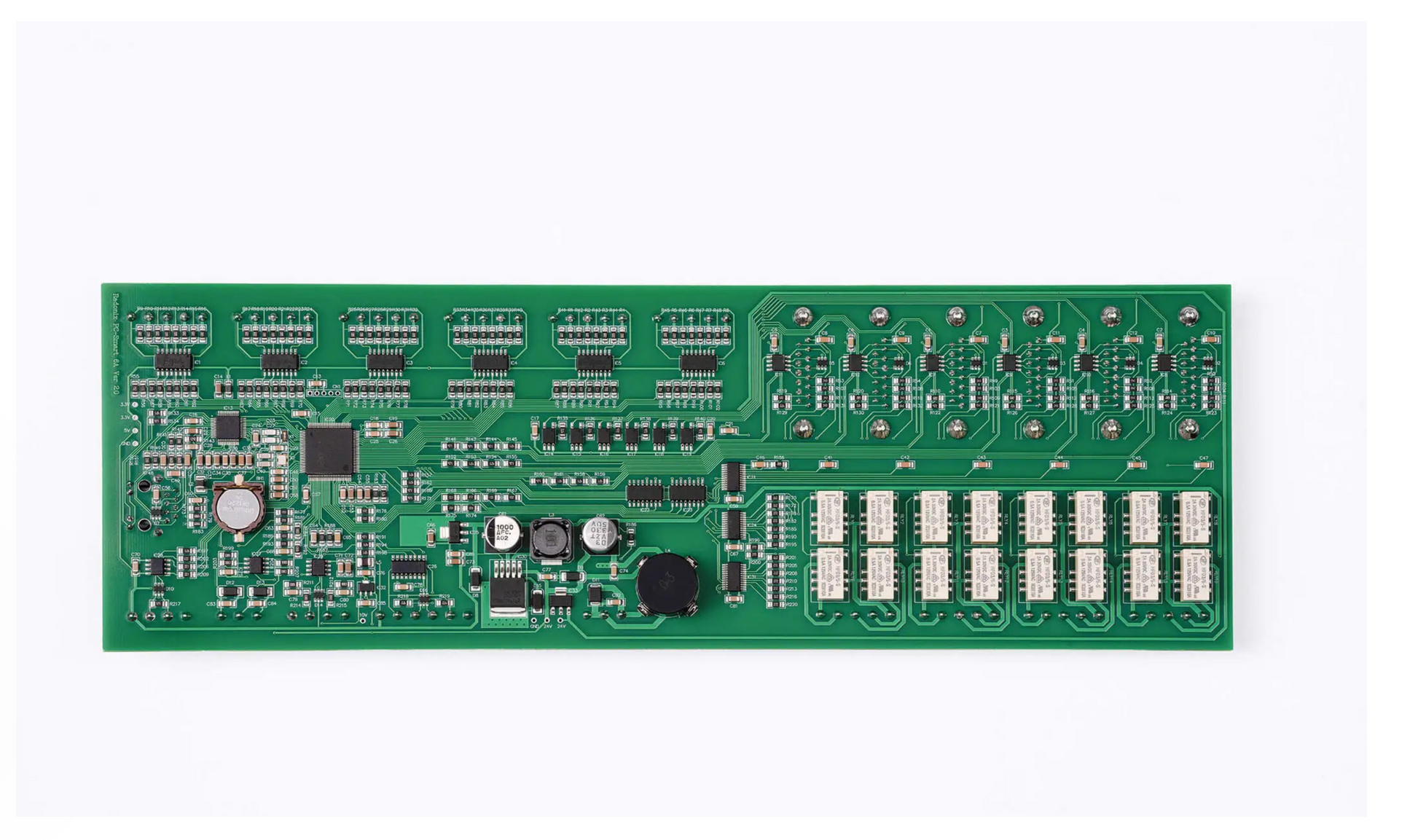

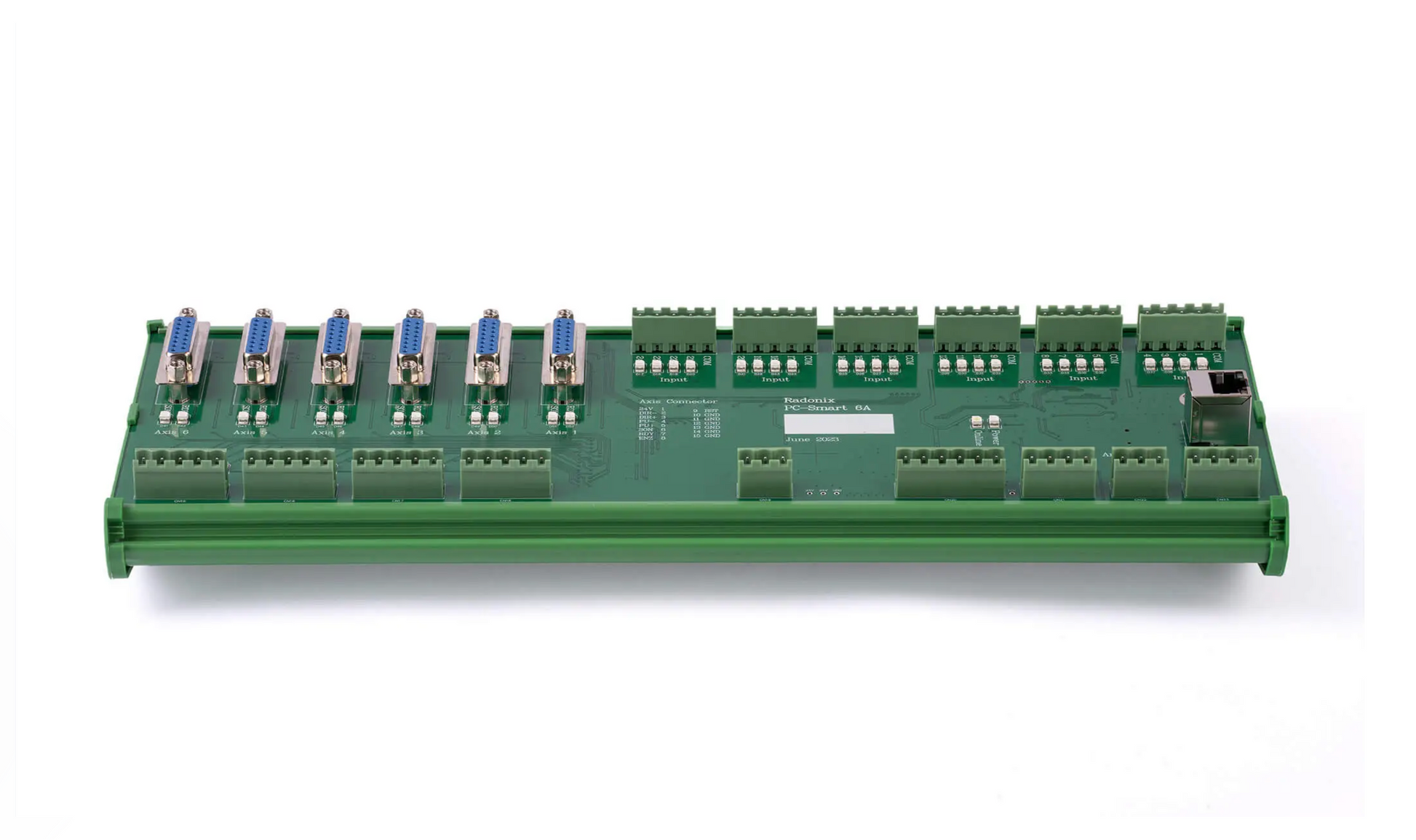

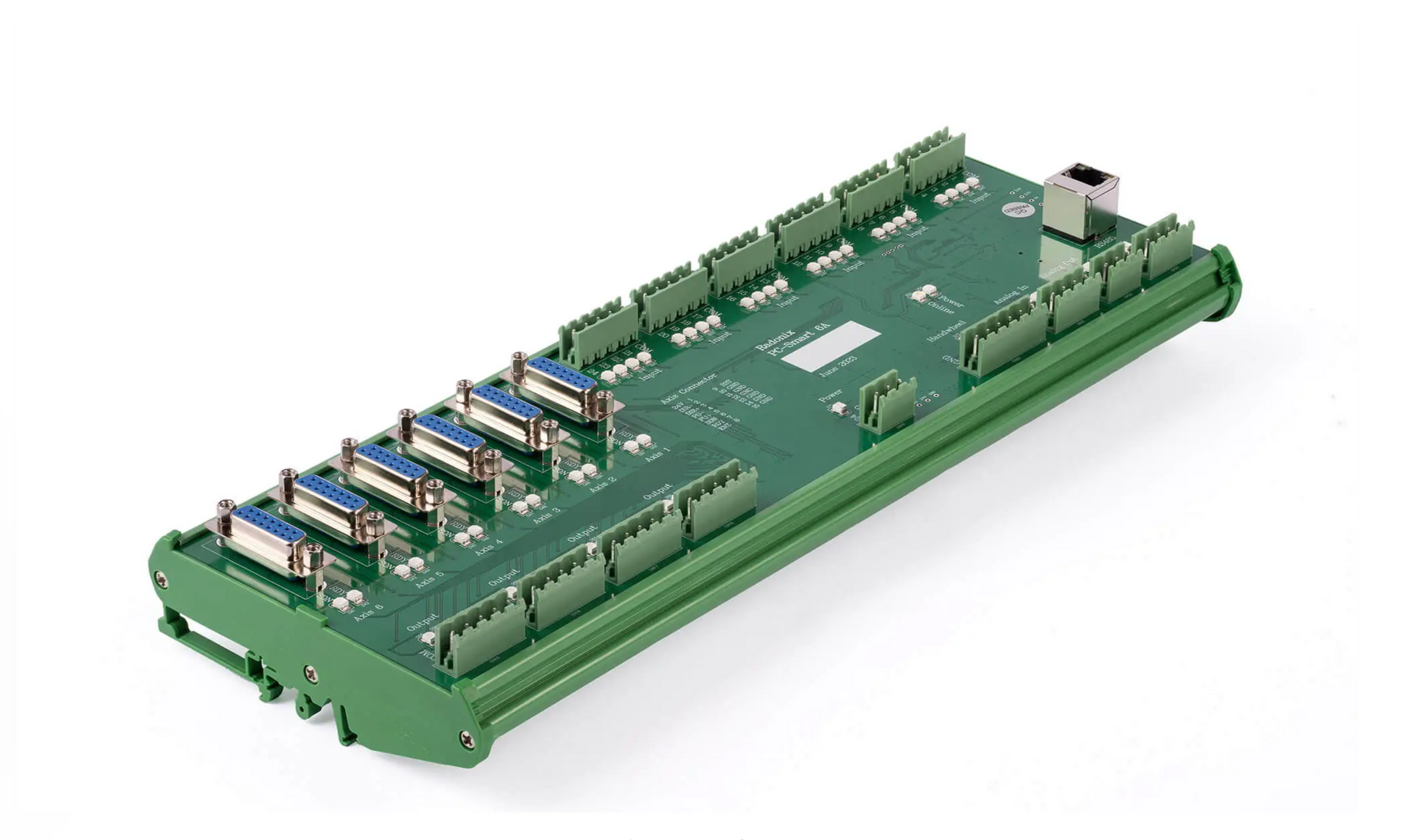

Radonix PC Smart 6A – 6-Axis CNC Control Card

 PC Smart 6A – 6-Axis CNC Control Card

A compact PC-based CNC control card capable of controlling 6 axes simultaneously at up to 500,000 pulses per second. Compatible with servo and stepper motors (pulse/direction), the PC Smart 6A is the flagship of the PC Smart series — built for high-complexity multi-axis manufacturing, 5-axis and 6-axis simultaneous machining, and advanced automation applications including robotic arms and aerospace-grade toolpaths.

5th-Generation Radonix Architecture  ·  17 Years of CNC Engineering  ·  Built for North American Manufacturers

Key Specifications

• Axes: 6 Interpolated and Independent
• Digital Inputs (PNP/NPN, Isolated): 24 Units (PNP/NPN, Optocoupler Isolated)
• Digital Outputs (PNP/NPN, Protected): 16 Units (PNP/NPN, Protected)
• Analog Outputs (Protected): 2 Units (0–10 Volts)
• Analog Inputs (Isolated): 2 Units (0–10 Volts)
• Axis Pulse Speed: 500,000 pulses/sec
• Axis Pulse Type: Pulse/Direction
• Acceleration Time: 50 to 30,000 mm/s²
• Speed Profile: S-Curve
• Hardware Buffer Size: 2,000 Block FIFO
• Isolation Type: Optocoupler
• Communication: LAN 100 Mbps (TCP/IP), >20m UTP / >50m SFUTP
• Power Consumption: 12–24V, 300mA
• Dimensions: 34 × 13 cm
• Operating System: Windows 7, 8, 10, 11
• Supported Equipment: Joystick, Remote Control, Handwheel

Applications

The PC Smart 6A is Radonix's most capable PC Smart model, suited for the most demanding multi-axis industrial applications. Confirmed compatible machine types and industries include:

•       5-axis and 6-axis CNC routing — gantry/bridge routers with X, Y, Z + A/B/C rotary axes

•       Mold & pattern shops — complex 3D surfaces in a single setup

•       Wood and furniture manufacturing — 5-axis/6-axis simultaneous carving and profiling

•       Stone & Marble — 3D relief, angled face cutting, multi-axis contouring

•       Aerospace and automotive prototyping — tight-tolerance, complex geometry parts

•       Composite and boat building — multi-axis trimming, routing, and drilling

•       Robotics — arm kinematics and helical path control for joints and actuators

•       Metal fabrication and multi-face milling

•       Glass & Ceramic precision cutting

•       Textile, Plastic & Composite fabrication

•       Jewelry CNC engraving

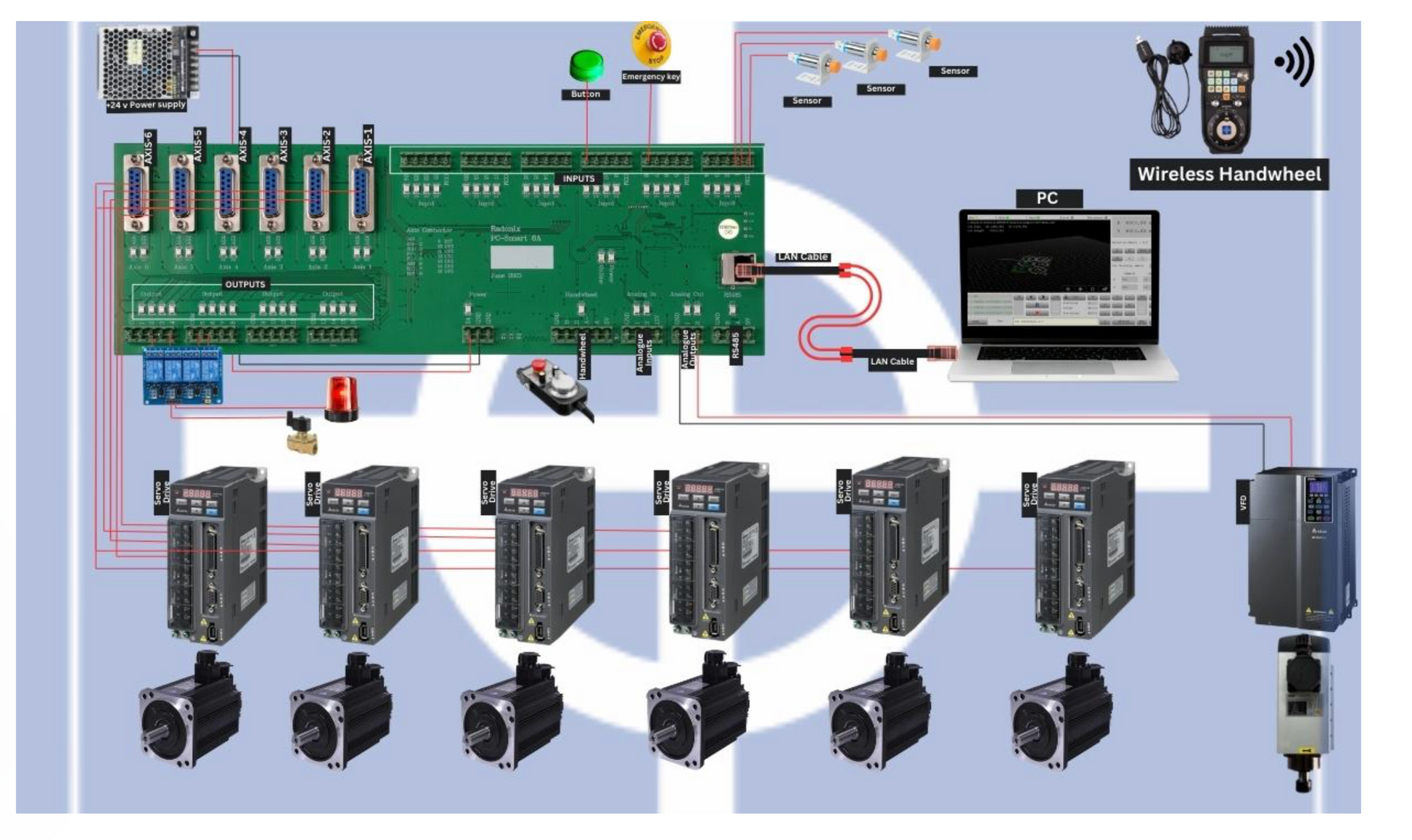

Motor Compatibility: Servo and stepper motors (pulse/direction interface).

What’s Included

• Radonix CAM-Pro software (free)
• 2-Year Warranty
• 10-Year After-Sales Service
• 24/7 Technical Support
