Radonix X4 Expander – CNC Axis Expander Up to 24 Axes

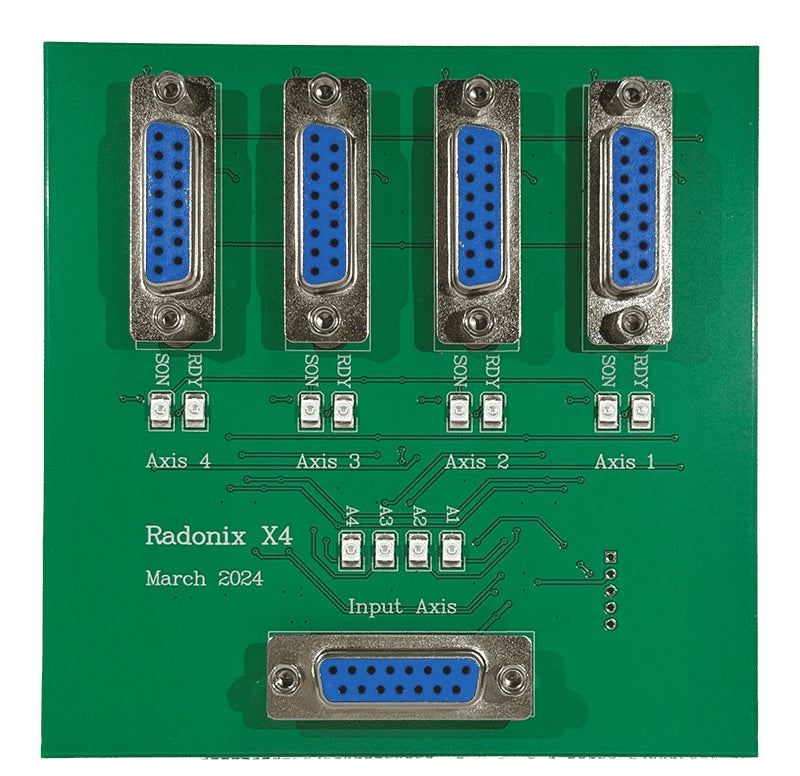

Radonix X4 Expander – CNC Axis Expander

The Radonix X4 Expander increases the axis capacity of your CNC machines, allowing you to operate more motors simultaneously. Specifically designed for gold and jewelry CNC machining, this module enables you to expand your systems up to 24 axes by utilizing Radonix's 6-axis control cards.

Key Features

• Axis Expansion: Expands 1 axis to 4 separate axes
• Input Pulse Type: Line Drive
• Output Pulse Type: Line Drive
• Digital Input: NPN Isolated Input
• Maximum System Capacity: Up to 24 total axes (with 6-axis controllers)
• Signal Technology: Standard step/direction signal replication across 4 channels
• Integration: Seamless with NPN isolated inputs and line driver outputs
• EMI Protection: Minimizes electromagnetic interference for precise movements

What is the X4 Expander?

The Radonix X4 Expander is designed for gold and jewelry processing CNC machines. It takes standard step/direction signals for a single axis and distributes them to four separate motor drivers, enabling synchronized operation of motors in special configurations such as multiple Z-axes or dual X-axes. This feature is particularly important for complex jewelry designs requiring multiple processing heads and precise gold engraving tasks.

Technical Specifications

• Input Signals: Standard step/direction signals from main control device
• Signal Replication: Incoming signals replicated across 4 separate channels
• Motor Drivers: Each channel connects to independent motor drivers for simultaneous operation
• Expandable Capacity: Each axis expandable up to 4 times, total capacity of 16 axes per X4 module

Applications

Ideal for jewelry & gold CNC machines, multi-head engraving systems, complex 3D carving operations, and precision manufacturing requiring synchronized multi-axis control.

What's Included

• 2-Year Warranty
• 10-Year After-Sales Service
• 24/7 Technical Support
